Double Door Adjustable Pick Up Guide (2 Sizes)

Coming Soon! Our Double Door Adjustable Pick Up Guide.

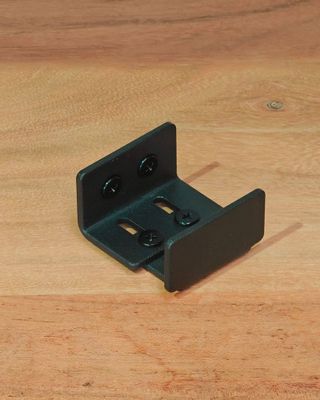

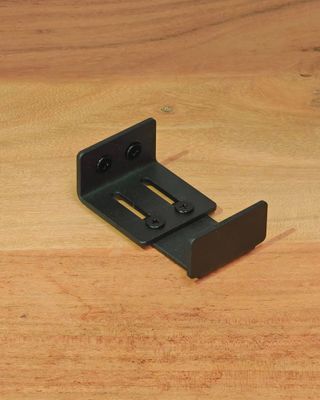

The Double Door Adjustable Pick Up Guide is designed to create smooth, reliable alignment between a pair of sliding barn doors. Installed at the base of your door system, it allows one door to securely engage and “pick up” the other as it slides open or closed — ensuring synchronized movement and a stable, refined finish.

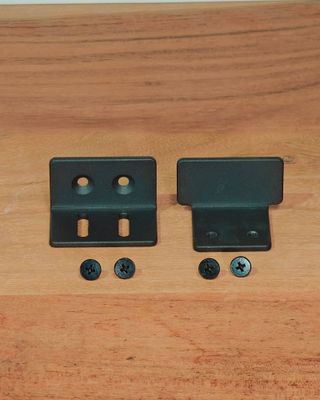

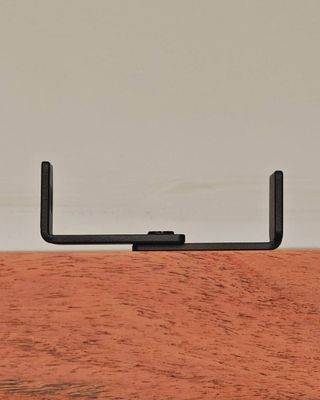

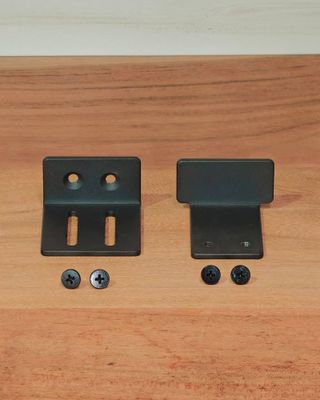

This guide is mounted directly to the floor and fastened to one of the doors, while its extended arm slides into the groove beneath the second door. The result is seamless coordination between panels without noise, wobble, or floor damage. Its adjustable mechanism accommodates a range of clearances, making it suitable for a variety of door thicknesses and installations.

Precision-engineered from cast steel and finished with a durable matte black powder coat, the Double Door Adjustable Pick Up Guide offers both strength and understated industrial style — perfectly matching the Visual Hardware Barn Doors.

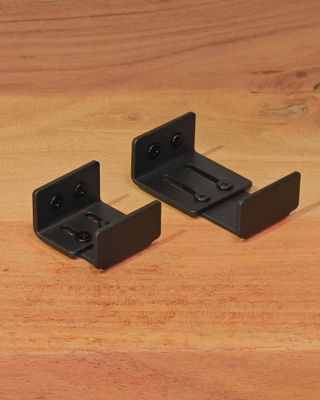

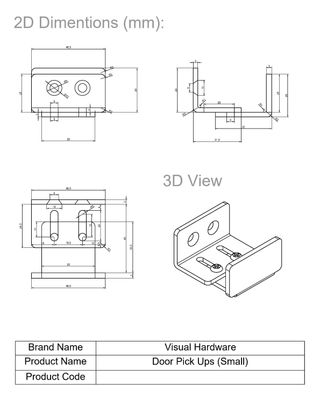

Small

• Adjustable Range: 30 – 45 mm
• Overall Height: 32 mm
• Width: 48.5 mm
• Mount Hole Diameter: Ø5 mm
• Front Plate Thickness: 3 mm

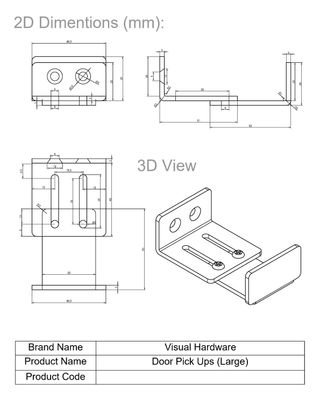

Large

• Adjustable Range: 50 – 80 mm
• Overall Height: 32 mm
• Width: 48.5 mm
• Mount Hole Diameter: Ø5 mm
• Plate Thickness: 3 mm
