Concealed Track Sliding Door Hardware

Concealed Track Sliding Door Hardware – For timber Doors with Soft-Close

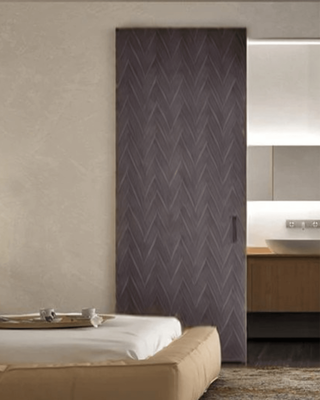

Transform your space with our Concealed Track Sliding Door Hardware, a modern invisible sliding door system designed for timber doors.
This ghost-style, hidden sliding door track combines minimalist aesthetics with smooth, trackless operation and a premium soft-close mechanism for silent, effortless movement.

Key Features

Space Saving Design

The concealed, trackless sliding system is engineered to maximize usable space by eliminating the need for traditional swing doors or visible floor tracks. Its wall-mounted configuration allows the door to glide smoothly across the wall surface, freeing up valuable floor area and creating a clean, uninterrupted look. Ideal for compact homes, offices, or minimalist interiors, this invisible ghost door hardware delivers a seamless transition between rooms while enhancing both functionality and spatial efficiency.

Precision Engineered for Smooth, Silent Performance

Crafted from aluminum concealed track, this invisible sliding door system ensures lasting strength, corrosion resistance, and a refined aesthetic. The nylon wheels with integrated bearings provide effortless, whisper-quiet motion, while the soft-close and soft-open deliver smooth, controlled operation that prevents door banging or rebound. For added stability, inserted base wheels guide the door securely along hard flooring surfaces—perfect for timber, tile, or concrete floors. This design maintains a silent, fluid operation while preventing sway, making it ideal for modern interiors. (Note: not recommended for carpeted areas due to floor wheel performance.)

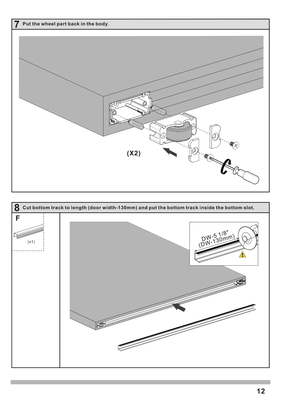

Tracks can be easily cut to suit your exact door width. The 1000 mm track is suitable for doors up to 1000 mm wide, and the 1200 mm track option accommodates doors up to 1200 mm wide. The hardware is rated for doors up to 60 kg, and for safe operation, the sliding mechanism must be securely mounted into solid wall fixings.

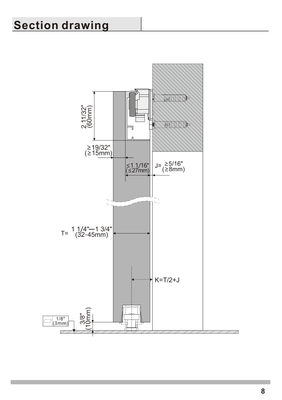

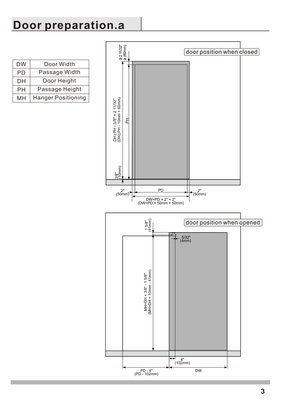

Hardware suitable for doors 32-45mm thick, it is possible to pack out the sliding mechanism if needed to allow for skirting. See the attached dimensional sketch.

Item is the hardware only, door not included.
