Classic Hanger Bypass Barn Door Hardware Set
or 6 weekly payments from $55.00 learn more

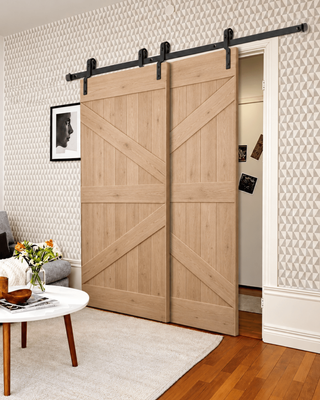

This is a set for double bypass doors in the classic hanger our most popular style.
If you do not have enough room to roll one door to the side to clear the door way this will allow two doors to cover the doorway, meaning you are able to slide the doors to the left to get into the right side of the opening and visa versa.
It is possible for this hardware to slide both doors off the opening but it would mean you would have to slide one door further than the width of itself, making the door come off the door guide. This will then allow the door to swing, so considering alternative ways to guide the door will be needed.
Due to the hangers being on a single track the minimum overlap allowance between of the x2 doors is 120mm if placed on the edge of the door, if placed in the centre of 100mm frame the placement would be 170mm. This extra overlap needs to be taken into account when selecting your door size and added additionally to the overlap either side of the opening.
We currently stock x2 options of this set.

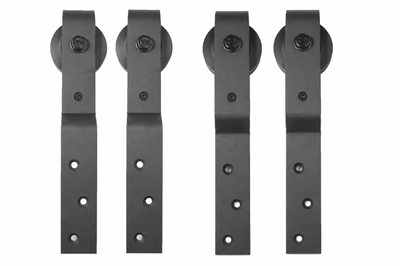

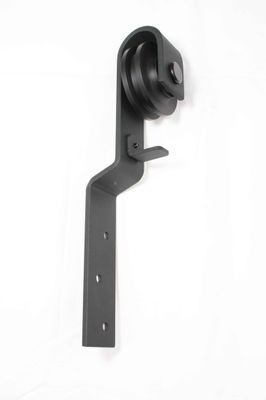

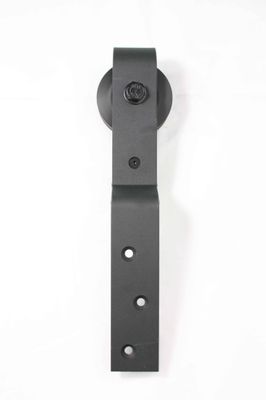

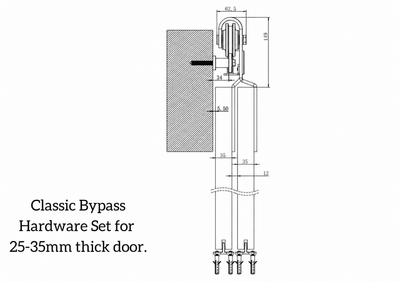

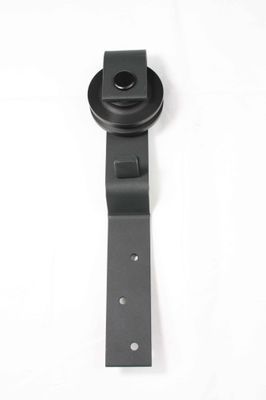

Option 1) Set allows two doors up to 35mm thick to on a single track. Two Hangers are off set to the back and two are offset to the front, with screws attaching the hangers to the door.

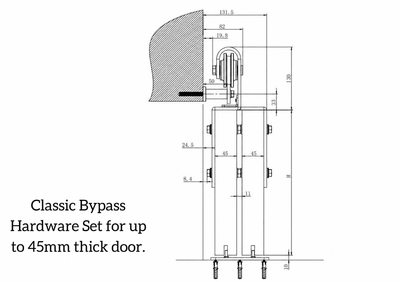

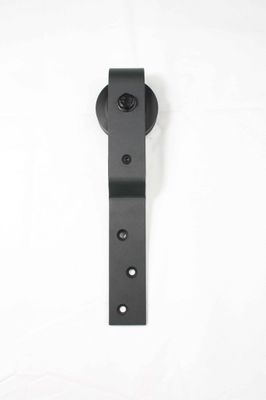

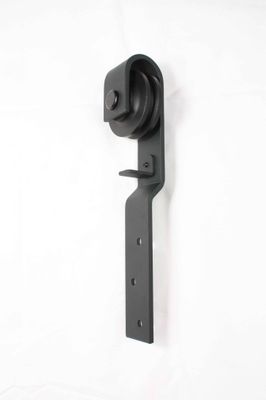

Option 2) Set allows two doors up to 45mm thick to on a single track. Two Hangers are off set to the back and two are offset to the front, with bolts attaching the hangers to the door.
- Made from high quality steel.
- Antique black colour only
- Supports doors up to 80kgs.
- Can accommodate wood door thickness up to 35mm or 45mm depending on set ordered.
- Door slides quietly and smoothly.
- Easy Installation, basic instructions included.
- 3 year warranty for full set.
Place see our bypass brackets below for another option.
Tracks have fixing holes pre drilled at 406mm. Tracks with no holes are available on request. If you need a longer track please send us an email as we do stock single piece tracks up to 4mtrs.
This set includes:
- Door Track Rail
- Door Rollers for two doors
- Rail Supports/ Spacers
- Door Stops
- Anti-jump pins
- Floor Guides
- Track Joiner if required
- All the bolts required.
